In this chapter we will create a simple KMDF driver
Install Visual Studio and WDK
1 Install Visual Studio
Install visual studio (latest)
Choose the following components:
- Desktop development with C++
- Windows Driver Development
2 Install Windows Driver Kit (WDK)
Get the latest WDK from the Mircrosoft official website, match it to your version of Visual Studio.
Once installed, you will get:
- Driver project templates
- Access to libraries
fwpkclnt.lib
,fwpuclnt.lib
, and header files
3 Setting Up a Testing Environment (VM)
Never test WFP drivers on your main OS. A bug in kernel code can BSOD your machine.
Create a dummy KMDF driver project
In Visual Studio → New Project → Kernel Mode Driver (KMDF)
Step 1: Kernel Driver (HelloDriver.c
)
Driver Code:
// Include the basic NT Driver Development Kit header
// This provides core Windows kernel-mode definitions and functions
#include <ntddk.h>
// Include the Windows Driver Framework header (optional in this case, but required for KMDF drivers)
#include <wdf.h>
// ------------------------------------------------------
// DriverUnload: This function is called when the driver
// is being unloaded from the system.
// ------------------------------------------------------
VOID DriverUnload(PDRIVER_OBJECT DriverObject)
{
// This macro just tells the compiler we are not using this parameter
UNREFERENCED_PARAMETER(DriverObject);
// Print a debug message to the kernel debugger or DebugView
DbgPrint("WFP Driver: Unload called.\n");
}
// ------------------------------------------------------
// DriverEntry: This is the main entry point for the driver.
// It is called by the OS when the driver is loaded.
// ------------------------------------------------------
NTSTATUS DriverEntry(PDRIVER_OBJECT DriverObject, PUNICODE_STRING RegistryPath)
{
// We are not using the registry path in this driver, so we mark it as unreferenced
UNREFERENCED_PARAMETER(RegistryPath);
// Register the unload routine so Windows knows which function to call
// when the driver is being removed
DriverObject->DriverUnload = DriverUnload;
// Print a message to the debugger to show that the driver has loaded
DbgPrint("WFP Driver: Hello World from WFP driver!\n");
// Return STATUS_SUCCESS to tell the OS the driver loaded successfully
return STATUS_SUCCESS;
}
Step 2: Testing: Creating the service and starting it
Creation of the service:
sc create Hello-World type= kernel binPath= "C:\Windows-Driver-Development\1_Hello-World\1_Hello-World.sys"
Start the service:
sc start Hello-World

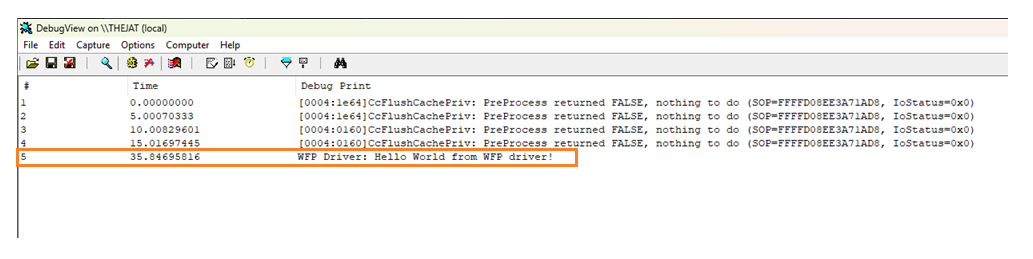

After starting the service we will see the debug message in the DbgView
Debugger.

Step 4: Stopping and Unloading the driver

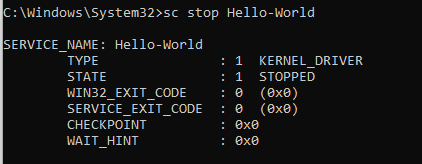

Run the following command to stop the driver:
sc stop Hello-World


To delete the entry of the driver from the registry use the following command:
sc delete Hello-World

View DbgPrint Output
Download DebugView
from this link, it will provide you a zip file, extract it.
Run the Dbgview.exe
from the extracted file as an Administrator
.

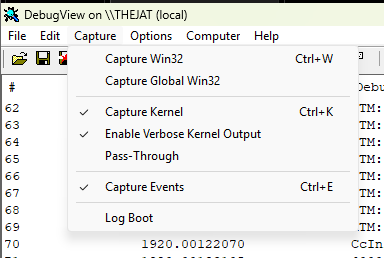

Check the following options from the capture
menu in top bar as shown in the below screenshot.
